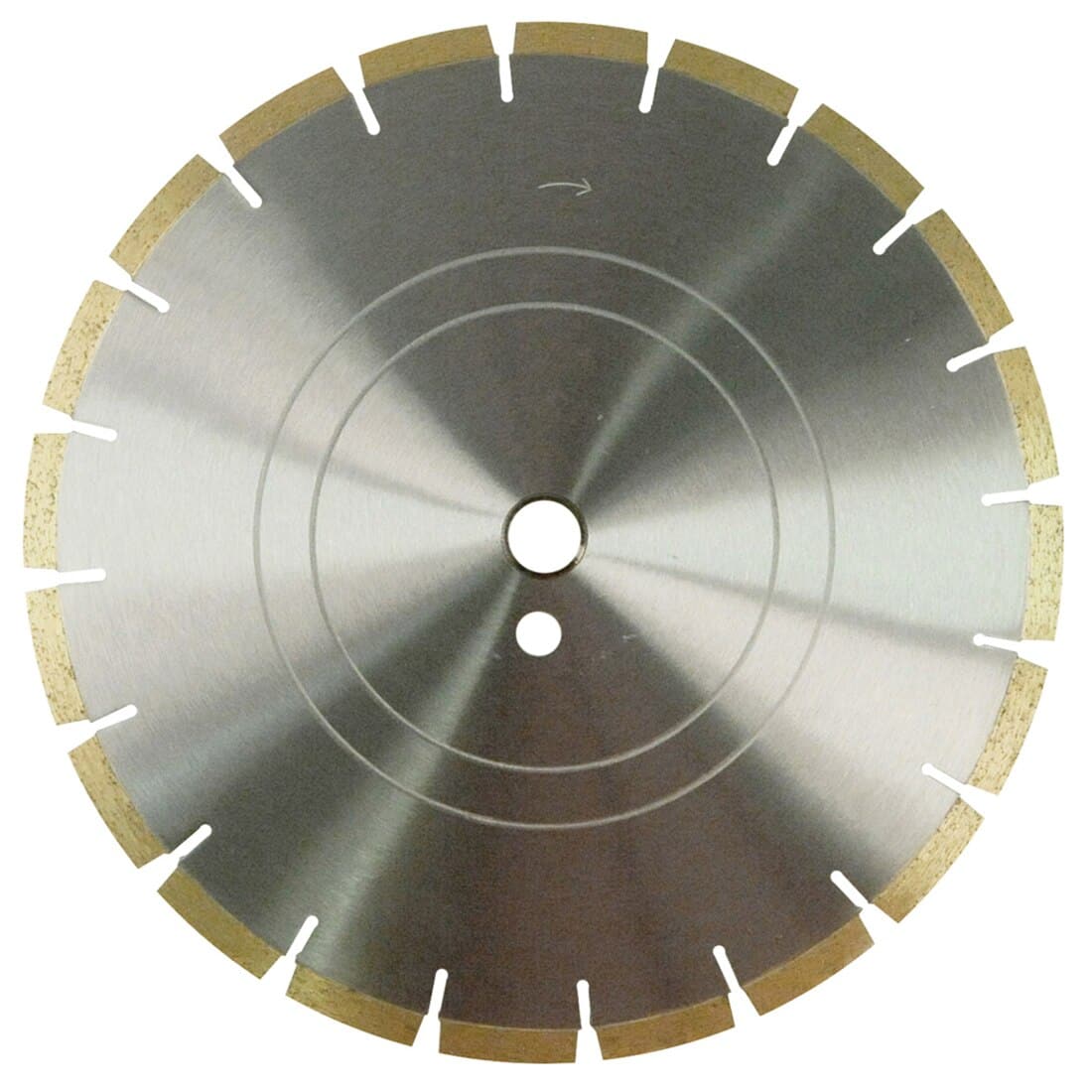

Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Hard Material blades are able to cut a multitude of hard materials and easily cut through the hardest aggregates and applications. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height.
Heavily Steel Reinforced Concrete, Critically Hard Aggregate Concrete (Flint, Chert), Hard To Medium Aggregate Concrete (Chert - Trap Rock - River Gravel), Medium Aggregate Concrete (Traprock - Quartz), Soft - Medium Aggregate Concrete (Granite - Limestone), Class A Engineering Brick 125 N/Mm2, Clay Pipe - Roof Tiles, Clay Paviours, Quarry Tiles, Terracotta, Porphyry, Class B Engineering Brick 75N/Mm2, Light Reinforced Concrete, Basalt, Hard Limestone, Limestone Aggregate Concrete, Lightly Reinforced Concrete, Concrete Paviours - Kerbs - Slabs, Concrete Roof Tiles - Pipes, Hard Facing Brick, Medium Facing Brick.
Ductile Iron, Quartzite, Refractory Brick, Soft Facing Bricks, Concrete Blocks Over 15N/Mm2, Hard Slate, Soft Slate, Marble, Concrete Screed.
Soft Sandstone (Coarse Grit), Plaster - Grout, Concrete Block Under 15N/Mm2, Thermal Block 7 N/Mm2.
Key
Correct Bond For Application Optimal Performance, Speed & Life
Good Match Bond For Application Excellent Performance Speed & Life
Acceptable Bond For Application Reduced Performance, Speed & Life
Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur
| PRODUCT TYPE | DIAMETER | SEGMENT HEIGHT | SEGMENT WIDTH | MAIN ARBOR - BORE | REDUCING RINGS INCLUDED | MACHINES USED | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO | CODE NO | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | |
| DA35610U | USAHM101215 | 300 | 12 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |      |
| DA35611U | USAHM101415 | 350 | 14 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA35612U | USAHM101615 | 400 | 16 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA35613U | USAHM101815 | 450 | 18 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
Available in USA, non-oSa accredited.
