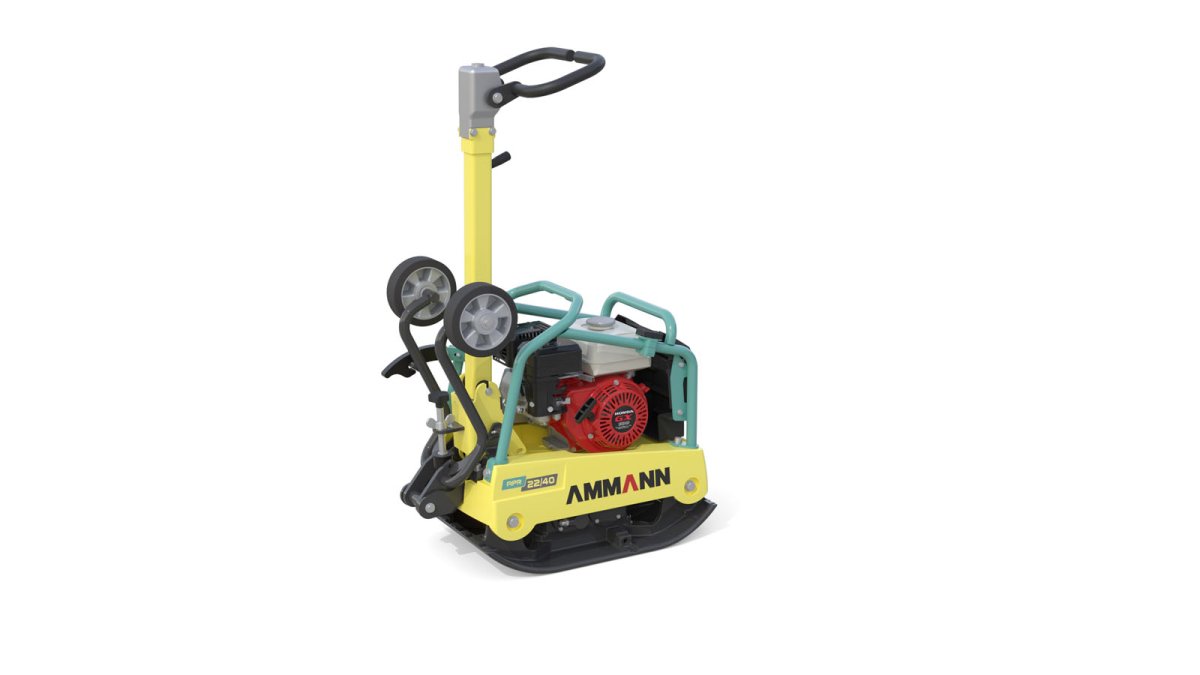

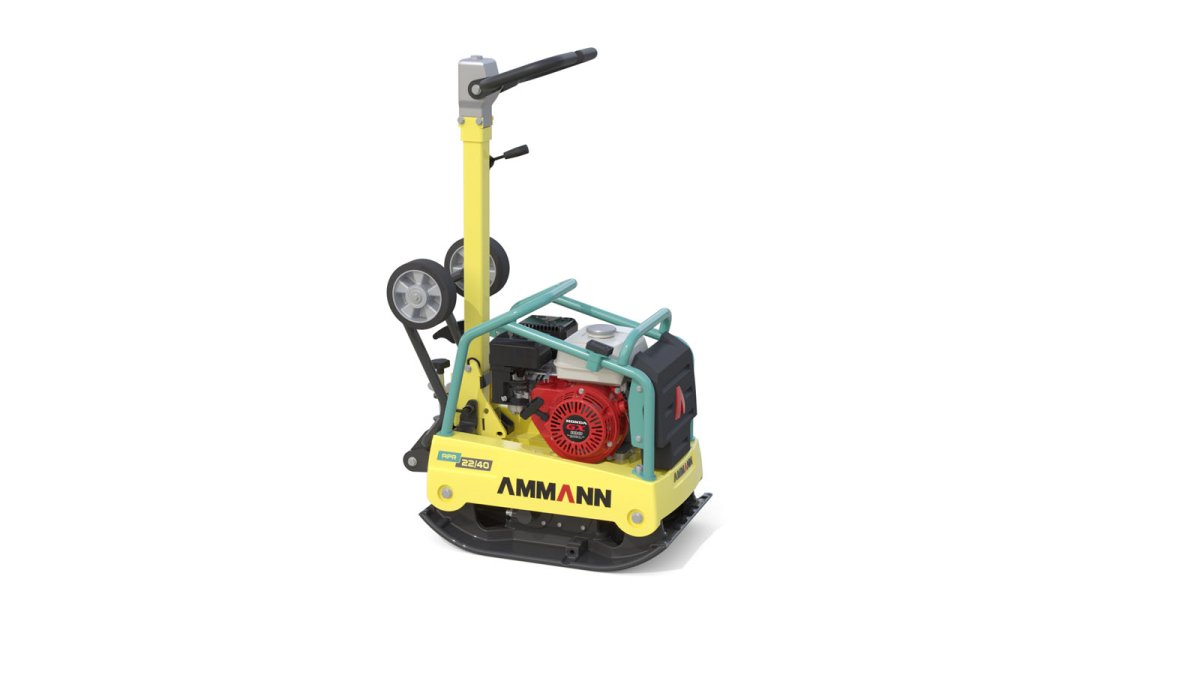

With a working width of 40 cm and a weight of about 100 kg (121 kg with diesel engine), this vibratory plate squeezes into tight locations.
The ability to overcome steep grades and move quickly on even and uneven surfaces allow a wide range of applications that the APR 22/40 can be used for.
HYDROSTATIC STEERING
The hydrostatic forward and reverse steering of APR plates enables quick directional changes and the ability to compact in tight and hard-to-reach spaces.
INDUSTRY-LEADING LOW HAV LEVELS
An innovative handle concept lowers the hand-arm vibration (HAV) values on Ammann APR plates to a level of less than 2.5 m/sec², making work more comfortable and safer. The vibration levels are so low that safety codes do not require documentation of operator hours.
+ better machine control
+ reduced operator fatigue
+ optimal operator health and safety
INTUITUVE OPERATION AND SAFETY
The handle provides ideal grip and enables simple, intuitive machine operation by simply pushing or pulling. The open design of the handle prevents machine damage that can result from accidental lifting. The handle folds for easy transport.
BUILT-IN DURABILITY
A robust and durable frame protects the plate from tough jobsites or improper use. The open design grants easy access for service and machine operation, ensuring the proper maintenance is undertaken to maximise machine life. The centrifugal clutch and wear resistant V belt are well protected by an additional cover that keeps out water and dirt.
BUILT-IN EFFICIENCY
The hydrostatic setting enables “on-the-spot” vibration in particularly challenging areas. The machine essentially hovers – no forward or reverse movement is required – while providing maximum compaction output that enables quick results.
BUILT-IN SAFETY
The innovative handle improves safety by reducing HAV values below 2.5 m/sec2 while also enabling precise control. The operator simply pushes or pulls the handle to engage the machine in forward or reverse. No separate controls or steering are required.
| WEIGHT & DIMENSIONS | ||
|---|---|---|
| Petrol | Diesel | |
| MACHINE WEIGHT | 100 kg | 118 kg |
| MACHINE WEIGHT (WITH OPTIONS) | 109 kg | 130 kg |
| A = BASE PLATE LENGTH | 254 mm | 254 mm |
| B = MACHINE LENGTH | 600 mm | 600 mm |
| C = WITH HANDLE | 1140 mm | 1140 mm |
| D = MACHINE HEIGHT | 625 mm | 725 mm |
| E = HANDLE HEIGHT (WORK) | 1000 mm | 1000 mm |
| F = HANDLE HEIGHT (TRANSPORT) | 1180 mm | 1180 mm |
| G = MACHINE WIDTH | 400 mm | 400 mm |
| COMPACTION FORCES | ||
|---|---|---|
| MAX. VIBRATION FREQUENCY | 98 Hz | 98 Hz |
| MAX. CENTRIFUGAL FORCE | 23 kN | 23 kN |
| WORKING SURFACE | 528 m²/h | 504 m²/h |
| SPEC. SURFACE PRESSURE | 22,6 N/cm² | 22,6 N/cm² |
| AMPLITUDE | 0.9 mm | 0.9 mm |
