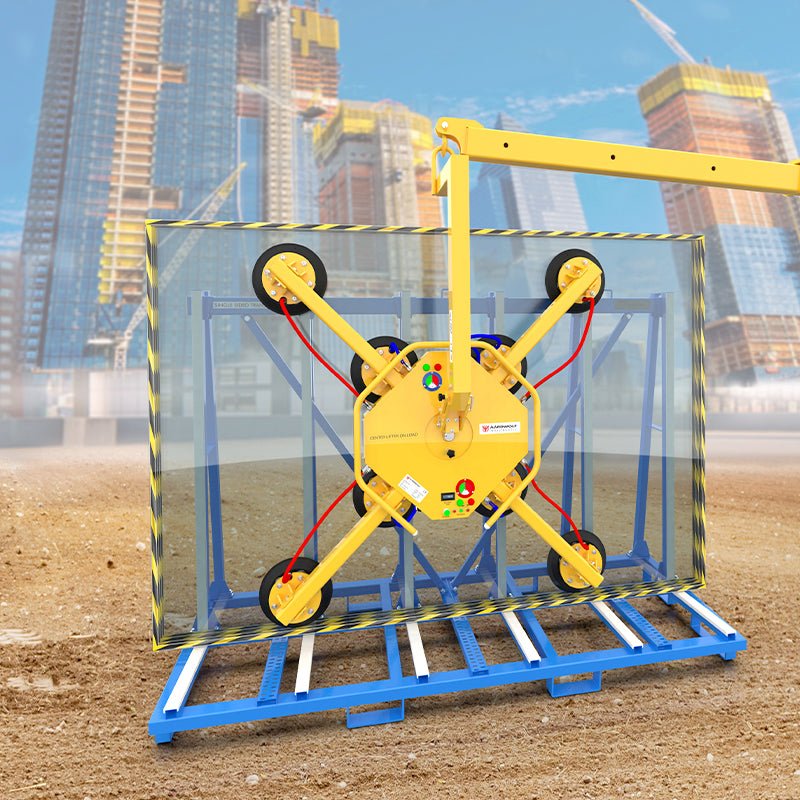

The DC Powered Vacuum Lifter (Dual System) ARGL-500DS is an electrical vacuum lifter with a 4-bar tilting mechanism. Integrated with a multi-angle rotation feature, the ARGL-500DS ensures flexibility when vertically rotating and tilting large glass sheets. The ARGL-500DS is equipped with two independent vacuum circuits, which support each other in the event of a system failure to ensure user safety during the working process.
Features
Specifications
| Metric (mm-kg) | Imperial (inch-lbs) | |
| Number of pads | 8 | - |
| Pad diameter | 300 | 11.8 |
| Working load limit | Vertical: 400 Horizontal: 500 | 882 1102 |
| Net weight | 83 | 183 |
| Gross weight | 103 | 227 |
| Packaging dimension | 1070x980x540 | 42.1x38.6x21.3 |
