The 10′ Tech Tripod Kit: 65′ Personnel Winch, 65′ 3-Way is our premium tripod with multiple configurations to fit a wide variety of work zones. The massive stance adjusts up to 18′ to cover confined space, trenches, bridges, mines, rescue, inspections and more. The unique design allows use in over-edge scenarios such as cliffs or vertical walls. This system is lightweight with quick setup and adjustability and includes a multi-function fall protection device plus winch to raise and lower workers.
Features:
Specifications:

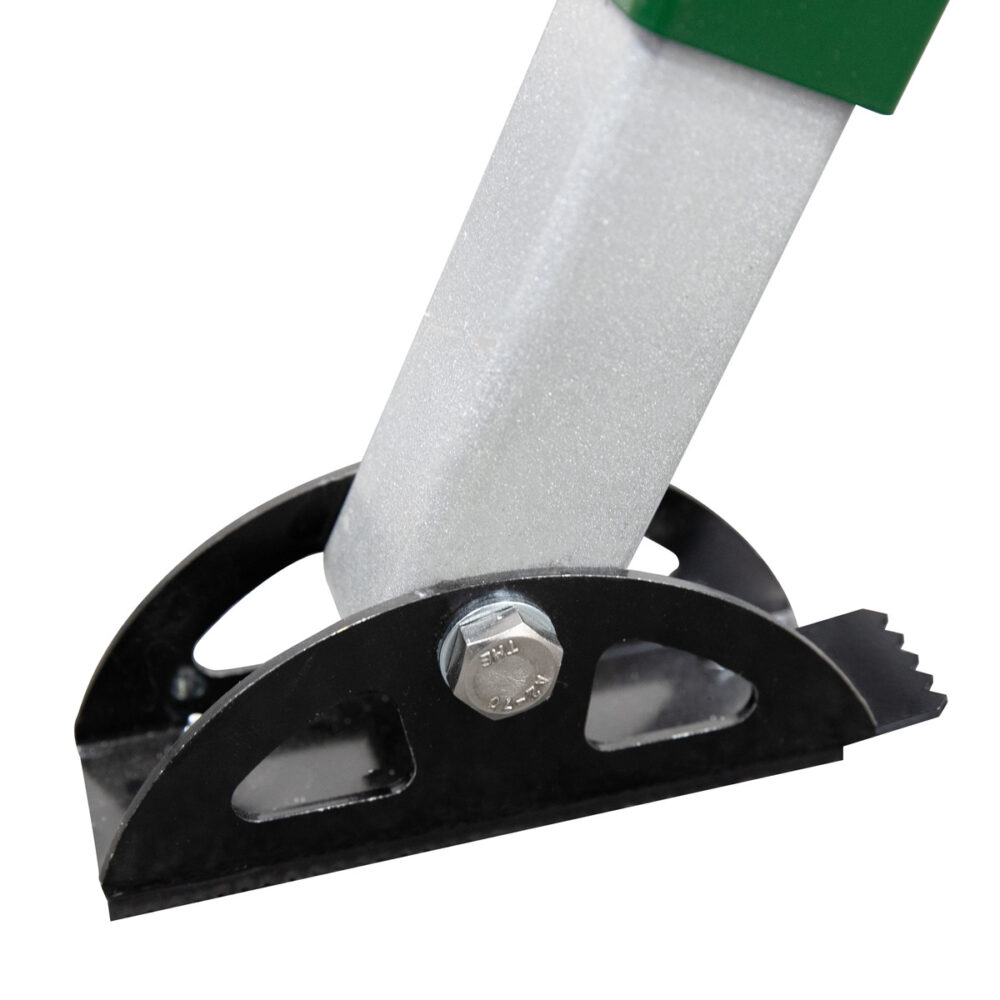

| Materials: | Aluminum tripod and head unit, stainless steel captive eye, powder coated steel feet with rubber foot pads, zinc plated steel chain and fasteners, nylon and stainless steel detent pins, aluminum pulleys, plated steel carabiners and mounting brackets |
| 3-Way System Materials: | Aluminum housing, plated steel and stainless steel components, galvanized steel cable, plastic handle |
| Personnel Winch Materials: | Powder coated steel device, plated steel components, galvanized steel cable, rubber handles, plastic cover |
| Packed Length: | 97.2" (247 cm) |
| Packed Width: | 12" (30.5 cm) |
| Working Height: | Tallest stance 119" (302.3 cm), Shortest stance 53.5" (135.9 cm) |
| Working Diameter: | Narrowest stance 86.6" (219.9 cm), Widest stance 218" (553.7 cm) |
| Weight: | 137.2 lbs. (62.2 kg) |
| Tripod Attachment Points: | 1 captive eye, 6 anchor points on tripod head |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (190 kg) |
| Maximum Material Capacity: | 620 lbs. (281 kg) |
| ANSI Standards: | Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022, Z359.14-2021 |
| OSHA Standards: | 1910.140, 1926.502 |
