Achilli AFR 300 C Manual Bridge Saw 10' Cut for Granite, Engineered Stone, Marble, Ceramic, and Porcelain Materials.

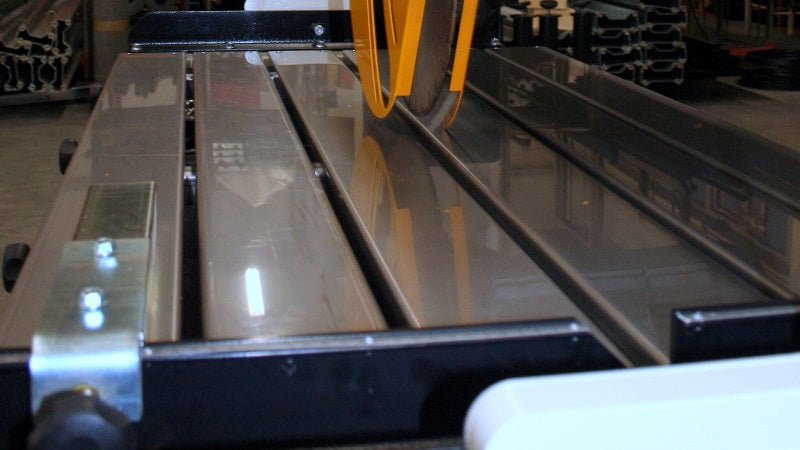

The AFR C fixed bridge manual saw is a compact and sturdy saw with a fixed bridge. The bridge tilt and the water tank with built-in recycling pump make it suitable for workshops. It is equipped with 2 extension tables to increase stability and facilitate the movement of the work pieces.

Cutting head is moved forward by means of a hand crank, placed at the end of the saw, which the operator turns to pull the blade through the material to be cut. Blade depth adjustment, also by hand crank, takes place on two rectified and chromed columns and on a steel screw with a brass nut.

AFR C Standard Features

• Head Feed -Manual feed head by hand crank.
• Useful cut - AFR-C is available with different cutting lengths: 4'11" - 6'6" - 8'2" - 9'10" - 10'10" - 11"5'
• Worktable - The worktable is made of galvanized steel rails with powder finish; hence it is durable.
• Extension Tables - This saw is equipped with No. 2 side extension tables 31.5" x 23" and side stop; therefore, it is expandable.
• Cutting Depth Adjustment - Another manual feature is the cutting depth adjustment.
• Bridge Tilt - Due to the manual bridge tilt for cutting from 90 to 45 degrees fabricators are able to make precise cuts.
•

• Beam design - Maximum cutting precision guaranteed by a special beam design.
• Suitable for stone, quartz, ceramic and sintered material slabs.

AFR C Optional Features

• Laser -Laser alignment device mounted on the head shows the blade's cutting line, so you are always on track.
• Device for Parallel Cuts- Machine can be equipped with a special device that facilitates the execution of parallel cuts.
• Profiling device - Optional "slot" device for horizontal cuts and straight edge profiling. This special kit (also available as a retrofit) can turn out very useful when having to produce ventilated facades, windowsills and steps.
• Water Tank - the machine is equipped with a water tank with built in recycling pumps.
